Provider Routing

Overview

Bifrost offers two powerful methods for routing requests across AI providers, each serving different use cases:

Governance-based Routing: Explicit, user-defined routing rules configured via Virtual Keys

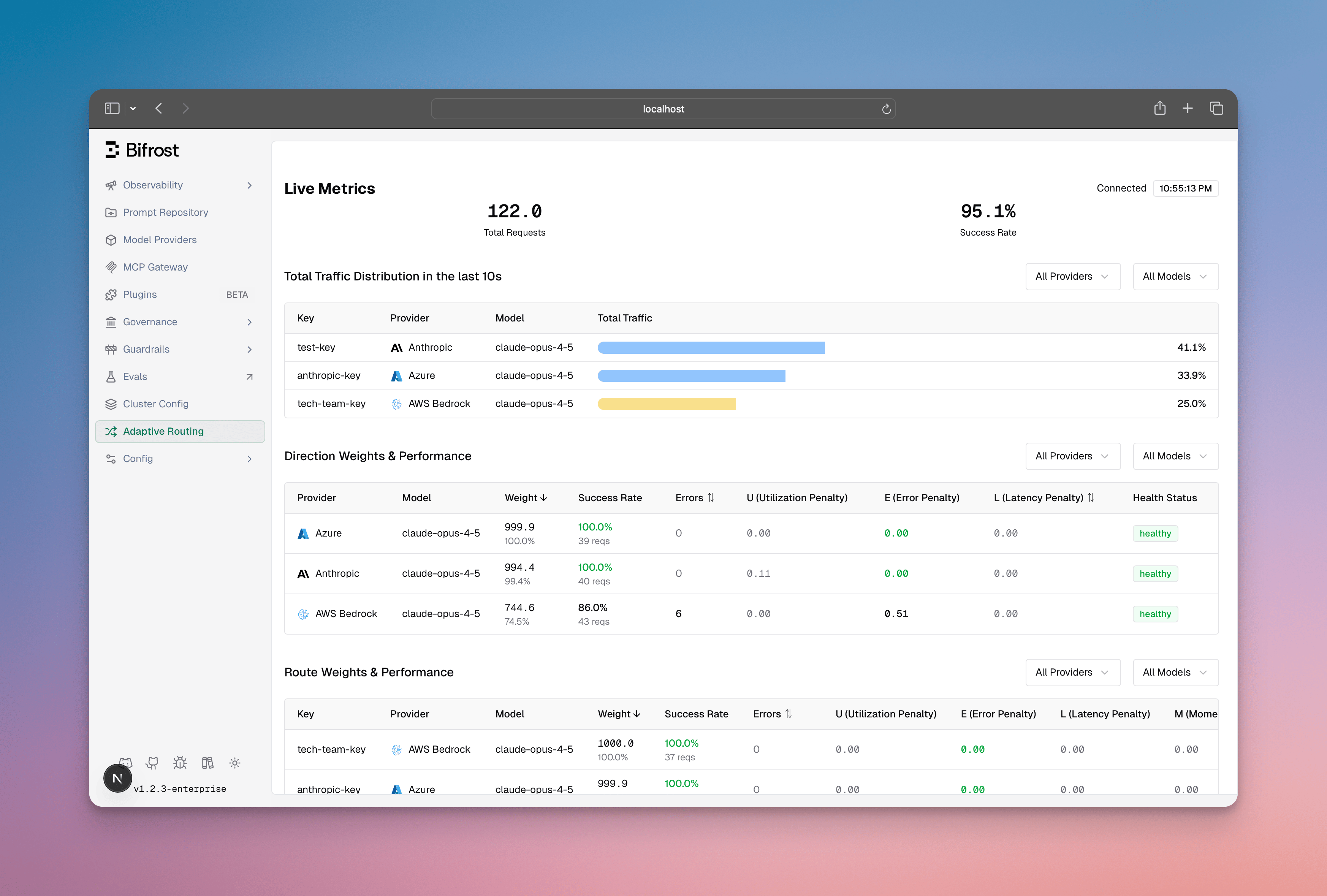

Adaptive Load Balancing: Automatic, performance-based routing powered by real-time metrics (Enterprise feature)

When both methods are available, governance takes precedence because users have explicitly defined their routing preferences through provider configurations on Virtual Keys.

When to use which method:

Use Governance when you need explicit control, compliance requirements, or specific cost optimization strategies
Use Adaptive Load Balancing for automatic performance optimization and minimal configuration overhead

The Model Catalog

The Model Catalog is Bifrost’s central registry that tracks which models are available from which providers. It powers both governance-based routing and adaptive load balancing by maintaining an up-to-date mapping of models to providers.

Architecture Documentation: For detailed technical documentation on the Model Catalog implementation, including API reference, thread safety, and advanced usage patterns, see Model Catalog Architecture.

Data Sources

The Model Catalog combines two data sources to maintain a comprehensive and up-to-date model registry:

Pricing Data (Primary source)
- Downloaded from a remote URL (configurable, defaults to https://getbifrost.ai/datasheet)
- Contains model names, pricing tiers, and provider mappings
- Synced to database on startup and refreshed periodically (default: every 24 hours)
- Used for cost calculation and initial model-to-provider mapping
- Stored as: In-memory map pricingData[model|provider|mode] for O(1) lookups
Provider List Models API (Secondary source)
- Calls each provider’s /v1/models endpoint during startup
- Enriches the catalog with provider-specific models and aliases
- Re-fetched when providers are added/updated via API or dashboard
- Adds models that may not be in pricing data yet (e.g., newly released models)
- Stored as: In-memory map modelPool[provider][]models

Why two sources? Pricing data provides comprehensive model coverage with cost information, while the List Models API ensures you can use newly released models immediately without waiting for pricing data updates.

How Model Availability is Determined

Bifrost uses a sophisticated multi-step process to determine if a model is available for a provider:

GetModelsForProvider(provider)

Purpose: Find all models available for a specific providerLookup Process:

Check modelPool[provider] for direct matches
Return all models in that provider’s slice

Example:

models := GetModelsForProvider("openai")
// Returns: ["gpt-4o", "gpt-4o-mini", "gpt-4-turbo", "gpt-3.5-turbo", ...]

Used by:

Routing Methods to validate allowed_models
Dashboard model selector dropdowns
API responses for /v1/models?provider=openai

GetProvidersForModel(model)

Purpose: Find all providers that support a specific modelLookup Process:

Direct lookup: Check each provider’s model list in modelPool
Cross-provider resolution: Apply special handling for proxy providers

Special Cross-Provider Rules:

OpenRouter Format

If model is not found directly, check if provider/model exists in OpenRouter

// Request: claude-3-5-sonnet
// Checks: openrouter models for "anthropic/claude-3-5-sonnet"
// Result: Adds "openrouter" to providers list

Vertex Format

If model is not found directly, check if provider/model exists in Vertex

// Request: claude-3-5-sonnet
// Checks: vertex models for "anthropic/claude-3-5-sonnet"
// Result: Adds "vertex" to providers list

Groq OpenAI Compatibility

For GPT models, check if openai/model exists in Groq

// Request: gpt-3.5-turbo
// Checks: groq models for "openai/gpt-3.5-turbo"
// Result: Adds "groq" to providers list

Bedrock Claude Models

For Claude models, check Bedrock with flexible matching

// Request: claude-3-5-sonnet
// Checks: bedrock models containing "claude-3-5-sonnet"
// Matches: "anthropic.claude-3-5-sonnet-20240620-v1:0"
// Result: Adds "bedrock" to providers list

Example:

providers := GetProvidersForModel("claude-3-5-sonnet")
// Returns: ["anthropic", "vertex", "bedrock", "openrouter"]
// Even though the request was just "claude-3-5-sonnet"!

Used by:

Load balancing to find candidate providers
Fallback generation
Model validation in requests

Pricing Lookup with Fallbacks

Purpose: Get pricing data for cost calculation and model validationLookup Key: model|provider|mode (e.g., gpt-4o|openai|chat)Fallback Chain:

Primary lookup: model|provider|requestType
Gemini → Vertex: If Gemini not found, try Vertex with same model
Vertex format stripping: For provider/model, strip prefix and retry
Bedrock prefix handling: For Claude models, try with anthropic. prefix
Responses → Chat: If Responses mode not found, try Chat mode

Example Flow:

// Request: claude-3-5-sonnet on Gemini (Responses API)

// 1. Try: claude-3-5-sonnet|gemini|responses → Not found
// 2. Try: claude-3-5-sonnet|vertex|responses → Not found
// 3. Try: claude-3-5-sonnet|vertex|chat → ✅ Found!

// Pricing returned from vertex/chat mode

Used by:

Cost calculation for billing
Model validation during routing
Budget enforcement

Syncing Behavior

Initial Sync (Startup)

When Bifrost starts, it performs a complete model catalog initialization:Step-by-step process (from server.go:Bootstrap()):

Load Pricing Data

// 1. Download from URL
pricingData := loadPricingFromURL(ctx)

// 2. Store in database (if configStore available)
configStore.CreateModelPrices(ctx, pricingData)

// 3. Load into memory cache
mc.pricingData = map[string]TableModelPricing{...}

Populate Initial Model Pool

// Build modelPool from pricing data
mc.populateModelPoolFromPricingData()
// Result: modelPool[provider] = [models from pricing]

Fetch Dynamic Models

// Call ListAllModels for all configured providers
modelData, err := client.ListAllModels(ctx, nil)

// Add results to model pool
mc.AddModelDataToPool(modelData)
// Result: modelPool enriched with provider-specific models

Handle Failures Gracefully

If list models API fails for a provider:

{"level":"warn","message":"failed to list models for provider ollama: connection refused"}

Logged as warning, does not stop startup
Provider remains usable with models from pricing data
Can be manually refreshed later via API

Result: Bifrost is ready with a comprehensive model catalog combining both sources.

Ongoing Sync (Background)

While Bifrost is running, the catalog stays up-to-date through background workers:Pricing Data Sync:

Background worker runs every 1 hour (ticker interval)
Checks if 24 hours have elapsed since last sync (configurable)
If yes, downloads fresh pricing data and updates database + memory cache
Timer resets after successful sync

List Models API Sync: Triggered by these events:

Provider Added: When a new provider is configured

POST /api/v1/providers
# Automatically calls ListModels for the new provider

Provider Updated: When provider config changes (keys, endpoints, etc.)

PUT /api/v1/providers/{provider}
# Refetches models to detect changes

Manual Refresh: Via API endpoint

POST /api/v1/providers/{provider}/models/refetch
# Explicitly refetches models for a provider

Manual Delete + Refetch: Clear and reload models

DELETE /api/v1/providers/{provider}/models
POST /api/v1/providers/{provider}/models/refetch
# Useful when models are out of sync

Failure Handling:

Pricing URL fails but database has data → Use cached database records
Pricing URL fails and no database data → Error logged, existing memory cache retained
List models API fails → Log warning, retain existing model pool entries

Fallback Strategy

Bifrost’s multi-layered approach ensures high availability:Layer 1: Pricing Data Persistence

URL fails → Database → Memory cache → Continue operation

Layer 2: Model Pool Redundancy

ListModels fails → Pricing data models → Continue with reduced catalog

Layer 3: Runtime Validation

Model not in catalog → Special cross-provider rules → May still work

Example Scenario:

Situation:
- Pricing URL is down
- OpenAI ListModels API is down
- User requests gpt-4o on OpenAI

Bifrost's Response:
1. ✅ Pricing data available from database (last sync 12h ago)
2. ✅ Model pool has gpt-4o from previous ListModels call
3. ✅ Request proceeds normally
4. 📊 Cost calculated from cached pricing data

This design ensures requests never fail due to sync issues as long as one data source is available.

Allowed Models Behavior with Examples

The allowed_models field in provider configs controls which models can be used with that provider. Understanding its behavior is crucial for governance routing.

Wildcard allowed_models (Use Catalog)
Explicit allowed_models (Strict Control)
Aliases (Key-Level)
Cross-Provider Model Routing

Configuration:

{
  "provider_configs": [
    {
      "provider": "openai",
      "allowed_models": ["*"],
      "weight": 1.0
    }
  ]
}

Behavior:

Bifrost calls GetModelsForProvider("openai")
Returns all models in modelPool["openai"]
Request validated against catalog

Examples:

# ✅ Allowed (in catalog)
curl -H "x-bf-vk: vk-123" -d '{"model": "gpt-4o"}'

# ✅ Allowed (in catalog)
curl -H "x-bf-vk: vk-123" -d '{"model": "gpt-3.5-turbo"}'

# ❌ Rejected (not in OpenAI catalog)
curl -H "x-bf-vk: vk-123" -d '{"model": "claude-3-5-sonnet"}'

Use Cases:

Default behavior for most deployments
Automatically stays up-to-date with provider’s model offerings
No manual model list maintenance required

Using "allowed_models": [] (empty array) means deny all models - no requests will be served. Use ["*"] to allow all models via the catalog.

Configuration:

{
  "provider_configs": [
    {
      "provider": "openai",
      "allowed_models": ["gpt-4o", "gpt-4o-mini"], // Only these two
      "weight": 1.0
    },
    {
      "provider": "anthropic",
      "allowed_models": ["claude-3-5-sonnet-20241022"], // Specific version
      "weight": 1.0
    }
  ]
}

Behavior:

Bifrost validates request model against explicit list
Catalog is ignored for this provider
Supports both direct matches and provider-prefixed entries
Case-sensitive matching

Examples:

# ✅ Allowed (in explicit list)
curl -H "x-bf-vk: vk-123" -d '{"model": "gpt-4o"}'

# ❌ Rejected (not in explicit list)
curl -H "x-bf-vk: vk-123" -d '{"model": "gpt-4-turbo"}'
# Even though gpt-4-turbo is in the OpenAI catalog!

# ✅ Allowed (exact match for Anthropic)
curl -H "x-bf-vk: vk-123" -d '{"model": "claude-3-5-sonnet-20241022"}'

# ❌ Rejected (version mismatch)
curl -H "x-bf-vk: vk-123" -d '{"model": "claude-3-5-sonnet-20240620"}'

Provider-Prefixed Entries:You can also use provider-prefixed model names in allowed_models. Bifrost will strip the prefix and match against the requested model:

{
  "provider_configs": [
    {
      "provider": "openrouter",
      "allowed_models": ["openai/gpt-4o", "anthropic/claude-3-5-sonnet"],
      "weight": 1.0
    }
  ]
}

How it works:

# Request without prefix
curl -H "x-bf-vk: vk-123" -d '{"model": "gpt-4o"}'

# 1. Checks: "openai/gpt-4o" in allowed_models
# 2. Strips prefix: "openai/gpt-4o" → "gpt-4o"
# 3. Compares: "gpt-4o" == "gpt-4o" ✅
# 4. Result: Allowed and routed to OpenRouter

This is particularly useful for proxy providers (OpenRouter, Vertex) where you want to explicitly control which upstream models are accessible.Use Cases:

Compliance requirements (only approved models)
Cost control (restrict to cheaper models)
Version pinning (prevent automatic updates)
Testing specific model versions
Explicit cross-provider routing (e.g., only allow OpenAI models via OpenRouter)

Key Concept: Aliases are key-level mappings that allow user-friendly model names to map to provider-specific identifiers.How Aliases Work:

Defined at the Key level, not Virtual Key level
Structure: aliases: {"user-facing-name": "provider-specific-id"}
Alias key (left side): User-facing model name used in requests
Provider ID (right side): Provider-specific identifier sent to the API

Azure OpenAI Example:Provider configuration with alias mapping:

{
  "providers": {
    "azure": {
      "keys": [
        {
          "name": "azure-prod-key",
          "value": "your-api-key",
          "aliases": {
            "gpt-4o": "my-prod-gpt4o-deployment",
            "gpt-4o-mini": "my-mini-deployment"
          },
          "azure_key_config": {
            "endpoint": "https://your-resource.openai.azure.com"
          }
        }
      ]
    }
  }
}

What Happens:

Allowed models derived from aliases: ["gpt-4o", "gpt-4o-mini"]
User requests with alias: {"model": "gpt-4o"}
Bifrost validates: gpt-4o is in derived allowed models ✅
Bifrost resolves alias: gpt-4o → my-prod-gpt4o-deployment
Sent to Azure: Uses my-prod-gpt4o-deployment as the deployment name
Pricing lookup: If pricing for resolved ID not found, falls back to alias gpt-4o

Bedrock Example with Inference Profiles:

{
  "providers": {
    "bedrock": {
      "keys": [
        {
          "name": "bedrock-key",
          "aliases": {
            "claude-sonnet": "us.anthropic.claude-3-5-sonnet-20241022-v2:0",
            "claude-opus": "us.anthropic.claude-3-opus-20240229-v1:0"
          },
          "bedrock_key_config": {
            "access_key": "your-access-key",
            "secret_key": "your-secret-key",
            "region": "us-east-1"
          }
        }
      ]
    }
  }
}

What Happens:

Allowed models: ["claude-sonnet", "claude-opus"] (from alias keys)
User requests: {"model": "claude-sonnet"}
Bifrost validates: claude-sonnet in allowed models ✅
Resolves alias: claude-sonnet → us.anthropic.claude-3-5-sonnet-20241022-v2:0
Sent to Bedrock: Full ARN used in API call

Priority of Model Restrictions:When determining allowed models for a key:

If key.models is NOT empty → Use key.models
Else if aliases exist → Use alias keys
Else → All models allowed (use Model Catalog)

Example with Both:

{
  "keys": [
    {
      "models": ["gpt-4o", "gpt-3.5-turbo"], // Explicit restriction
      "aliases": {
        "gpt-4o": "my-deployment",
        "gpt-4-turbo": "another-deployment" // NOT accessible!
      },
      "azure_key_config": {
        "endpoint": "https://your-resource.openai.azure.com"
      }
    }
  ]
}

Result: Only ["gpt-4o", "gpt-3.5-turbo"] allowed (models field takes priority)Vertex Example (similar pattern):

{
  "keys": [
    {
      "aliases": {
        "claude-3-5-sonnet": "anthropic/claude-3-5-sonnet@20241022",
        "gemini-pro": "google/gemini-1.5-pro"
      },
      "vertex_key_config": {
        "project_id": "my-project",
        "region": "us-central1"
      }
    }
  ]
}

Use Cases for Aliases:

Azure: Map generic model names to specific deployment names in your Azure resource
Bedrock: Use short aliases for long inference profile ARNs
Vertex: Map to specific model versions or regional endpoints
Multi-environment: Different aliases per key (dev/staging/prod)

Key Insight:

User Request: {"model": "gpt-4o"}
              ↓
Validation: Check if "gpt-4o" in allowed models (derived from aliases)
              ↓
Mapping: aliases["gpt-4o"] → "my-prod-gpt4o-deployment"
              ↓
API Call: Uses "my-prod-gpt4o-deployment" as deployment ID
              ↓
Pricing: Falls back to "gpt-4o" if resolved ID not in pricing data

This allows user-friendly model names in requests while supporting provider-specific identifier patterns at the key level.

Configuration:

{
  "provider_configs": [
    {
      "provider": "openai",
      "allowed_models": ["gpt-4o"],
      "weight": 0.5
    },
    {
      "provider": "azure",
      "allowed_models": ["gpt-4o"],
      "weight": 0.5
    }
  ]
}

Request:

curl -H "x-bf-vk: vk-123" \
     -d '{"model": "gpt-4o"}'

Routing Behavior:

Model validation: Both providers have gpt-4o in allowed_models ✅
Weighted selection: 50% chance each
Provider selected: Let’s say Azure
Model transformation: gpt-4o → azure/gpt-4o
Fallbacks: ["openai/gpt-4o"] (remaining providers)

Special Cross-Provider Scenarios:

OpenRouter as Universal Proxy

{
  "provider_configs": [
    {
      "provider": "openrouter",
      "allowed_models": ["*"]
    }
  ]
}

Request claude-3-5-sonnet:

Bifrost checks: GetModelsForProvider("openrouter")
Finds: anthropic/claude-3-5-sonnet in OpenRouter catalog
✅ Allowed, routes to OpenRouter

Weighted Routing via Proxy Provider

Use Case: Route 99% of OpenAI traffic through OpenRouter for cost savings, keep 1% direct for fallback

{
  "provider_configs": [
    {
      "provider": "openai",
      "allowed_models": ["gpt-4o"],
      "weight": 0.01  // 1% direct to OpenAI
    },
    {
      "provider": "openrouter",
      "allowed_models": ["openai/gpt-4o"],  // Provider-prefixed
      "weight": 0.99  // 99% via OpenRouter
    }
  ]
}

Request gpt-4o:

OpenAI check: "gpt-4o" in ["gpt-4o"] → ✅ Allowed
OpenRouter check: Strips prefix from "openai/gpt-4o" → matches "gpt-4o" → ✅ Allowed
Weighted selection: 99% chance → OpenRouter selected
Final model: openrouter/gpt-4o
Fallbacks: ["openai/gpt-4o"] (1% provider as fallback)

Why this works: Bifrost now supports provider-prefixed entries in allowed_models, so "openai/gpt-4o" matches requests for "gpt-4o".

Vertex as Multi-Provider Gateway

{
  "provider_configs": [
    {
      "provider": "vertex",
      "allowed_models": ["claude-3-5-sonnet", "gemini-1.5-pro"]
    }
  ]
}

Request claude-3-5-sonnet:

Model catalog lookup: GetProvidersForModel("claude-3-5-sonnet")
Finds: ["anthropic", "vertex", "bedrock"]
Validation: claude-3-5-sonnet in allowed_models ✅
Sends to Vertex as: anthropic/claude-3-5-sonnet

Groq OpenAI Compatibility

{
  "provider_configs": [
    {
      "provider": "groq",
      "allowed_models": ["gpt-3.5-turbo"]
    }
  ]
}

Request gpt-3.5-turbo:

Special handling: Checks Groq catalog for openai/gpt-3.5-turbo
✅ Found, validation passes
Sends to Groq as: openai/gpt-3.5-turbo

How It’s Used in Routing

Governance Routing
Load Balancing

When a Virtual Key has provider_configs, governance uses the model catalog for validation:Wildcard allowed_models Example:

{
  "provider_configs": [
    {
      "provider": "openai",
      "allowed_models": ["*"],
      "weight": 0.5
    }
  ]
}

Request Flow:

curl -H "x-bf-vk: vk-123" -d '{"model": "gpt-4o"}'

# 1. Governance checks: Is "gpt-4o" in GetModelsForProvider("openai")?
# 2. Catalog lookup: modelPool["openai"] contains "gpt-4o" ✅
# 3. Validation passes, provider selected
# 4. Model becomes: "openai/gpt-4o"

Rejection Example:

curl -H "x-bf-vk: vk-123" -d '{"model": "claude-3-5-sonnet"}'

# 1. Governance checks: Is "claude-3-5-sonnet" in GetModelsForProvider("openai")?
# 2. Catalog lookup: modelPool["openai"] does NOT contain "claude-3-5-sonnet" ❌
# 3. Validation fails, request rejected
# 4. Error: "model not allowed for any configured provider"

When load balancing selects providers, it queries the catalog to find candidates:Request Flow:

curl -X POST http://localhost:8080/v1/chat/completions \
  -d '{"model": "gpt-4o", "messages": [...]}'

# 1. Load balancer: GetProvidersForModel("gpt-4o")
# 2. Catalog returns: ["openai", "azure", "groq"]
# 3. Filter by configured providers: ["openai", "azure"]  (groq not configured)
# 4. Performance scoring: openai=0.95, azure=0.87
# 5. Select: openai (highest score)
# 6. Model becomes: "openai/gpt-4o"
# 7. Fallbacks: ["azure/gpt-4o"]

Cross-Provider Discovery:

curl -d '{"model": "claude-3-5-sonnet"}'

# 1. Load balancer: GetProvidersForModel("claude-3-5-sonnet")
# 2. Catalog checks:
#    - Direct: ["anthropic"] ✅
#    - OpenRouter: Has "anthropic/claude-3-5-sonnet" ✅
#    - Vertex: Has "anthropic/claude-3-5-sonnet" ✅
#    - Bedrock: Has "anthropic.claude-3-5-sonnet-..." ✅
# 3. Catalog returns: ["anthropic", "openrouter", "vertex", "bedrock"]
# 4. Performance scoring across all four
# 5. Best performer selected

This is how Bifrost achieves intelligent cross-provider routing without manual configuration.

Model Catalog is essential for cross-provider routing. Without it, Bifrost wouldn’t know that gpt-4o is available from OpenAI, Azure, and Groq, or that claude-3-5-sonnet can be routed through Anthropic, Vertex, Bedrock, and OpenRouter. This knowledge powers both governance validation and load balancing provider discovery.

Default Provider Resolution

Default provider resolution via model catalog is available in Bifrost v1.5.0-prerelease7 and above.

When a request includes a bare model name without a provider/ prefix (e.g., "model": "gpt-4o" instead of "model": "openai/gpt-4o"), Bifrost automatically resolves the provider using the Model Catalog. This default behavior is applied after all other routing engines have run — the built-in model-catalog-resolver PreRequestHook plugin is registered as the last routing layer (order 9 within builtin), so governance routing rules, VK load balancing, and enterprise LB all get first crack.

How It Works

Request arrives without a provider prefix (e.g., "model": "gpt-4o")
Governance, VK LB, and enterprise LB all run first; if any of them sets req.Provider, the resolver no-ops
Catalog lookup (if req.Provider is still empty): Bifrost calls GetProvidersForModel("gpt-4o") to find all providers that support the model
Provider selected: If the request came in via an integration route (OpenAI / Anthropic / GenAI / Bedrock / Cohere) and the catalog includes that integration’s canonical provider in the candidate list, it is preferred. Otherwise the first candidate is selected.
Request continues: The resolved provider/model is used for the provider call, fallback handling, and Level 2 key selection.

This is logged as the model-catalog routing engine in telemetry and routing logs, with a message like:

No provider specified for model gpt-4o, found 3 options in model catalog:
[openai, azure, groq], selected: openai

Example

# These two requests are equivalent when the model catalog
# maps gpt-4o → openai as the first provider:
curl -X POST http://localhost:8080/v1/chat/completions \
  -H "Content-Type: application/json" \
  -d '{"model": "gpt-4o", "messages": [{"role": "user", "content": "Hello!"}]}'

curl -X POST http://localhost:8080/v1/chat/completions \
  -H "Content-Type: application/json" \
  -d '{"model": "openai/gpt-4o", "messages": [{"role": "user", "content": "Hello!"}]}'

If the model catalog is not available or the model is not found in any provider, the request returns an error asking for the provider/model format. For deterministic provider selection, always use the explicit provider/model prefix.

Routing allowlist enforcement

When a Virtual Key has provider_configs, governance publishes the VK’s allowed-provider set to the request context (BifrostContextKeyRoutingAllowedProviders). The constraint is then enforced at two levels:

Cooperative filtering (observability-first): Enterprise LB and the model-catalog-resolver intersect their catalog candidates with the allowlist before picking a provider. This produces clean routing-engine logs explaining why a candidate was excluded (“filtered N catalog candidates by routing allowlist”).
Hard enforcement in core: After all PreRequestHook plugins have run, the core validates the final req.Provider against the allowlist. If req.Provider isn’t in the allowlist, the request fails with HTTP 400. Fallbacks that target non-allowed providers are silently filtered out.

Why two levels: cooperative filtering surfaces routing decisions in observability; core enforcement makes the constraint a guarantee that no plugin (or user-specified provider/model prefix) can bypass. A user request for model: "anthropic/claude-3" against a VK that allows only [openai, azure] is rejected by core enforcement even though the user provided an explicit prefix. Custom routing plugins can set the same context key to constrain downstream routing for any reason — geo restrictions, A/B test cohorts, tier-based gating, etc. The semantics are fail-closed: setting BifrostContextKeyRoutingAllowedProviders to an empty slice means “no provider is permitted for this request” → HTTP 400.

Governance-based Routing

Governance-based routing allows you to explicitly define which providers and models should handle requests for a specific Virtual Key. This method provides precise control over routing decisions.

How It Works

When a Virtual Key has provider_configs defined:

Request arrives with a Virtual Key (e.g., x-bf-vk: vk-prod-main)
Model validation: Bifrost checks if the requested model is allowed for any configured provider
Provider filtering: Providers are filtered based on:
- Model availability in allowed_models
- Budget limits (current usage vs max limit)
- Rate limits (tokens/requests per time window)
Weighted selection: A provider is selected using weighted random distribution
Provider prefix added: Model string becomes provider/model (e.g., openai/gpt-4o)
Fallbacks created: Remaining providers sorted by weight (descending) are added as fallbacks

Configuration Example

{
  "provider_configs": [
    {
      "provider": "openai",
      "allowed_models": ["gpt-4o", "gpt-4o-mini"],
      "weight": 0.3,
      "budget": {
        "max_limit": 100.0,
        "current_usage": 45.0
      }
    },
    {
      "provider": "azure",
      "allowed_models": ["gpt-4o"],
      "weight": 0.7,
      "rate_limit": {
        "token_max_limit": 100000,
        "token_reset_duration": "1m"
      }
    }
  ]
}

Request Flow

Request with Virtual Key

curl -X POST http://localhost:8080/v1/chat/completions \
  -H "x-bf-vk: vk-prod-main" \
  -d '{"model": "gpt-4o", "messages": [...]}'

Governance Evaluation

OpenAI: ✅ Has gpt-4o in allowed_models, budget OK, weight 0.3
Azure: ✅ Has gpt-4o in allowed_models, rate limit OK, weight 0.7

Weighted Selection

70% chance → Azure
30% chance → OpenAI

Request Transformation

{
  "model": "azure/gpt-4o",
  "messages": [...],
  "fallbacks": ["openai/gpt-4o"]
}

Key Features

Feature	Description
Explicit Control	Define exactly which providers and models are accessible
Budget Enforcement	Automatically exclude providers exceeding budget limits
Rate Limit Protection	Skip providers that have hit rate limits
Weighted Distribution	Control traffic distribution with custom weights
Automatic Fallbacks	Failed providers automatically retry with next highest weight

Best Practices

Cost Optimization

Assign higher weights to cheaper providers for cost-sensitive workloads:

{
  "provider_configs": [
    {"provider": "groq", "allowed_models": ["*"], "key_ids": ["*"], "weight": 0.7},
    {"provider": "openai", "allowed_models": ["*"], "key_ids": ["*"], "weight": 0.3}
  ]
}

Environment Separation

Create different Virtual Keys for dev/staging/prod with different provider access:

{
  "virtual_keys": [
    {
      "id": "vk-dev",
      "provider_configs": [{"provider": "ollama", "allowed_models": ["*"], "key_ids": ["*"]}]
    },
    {
      "id": "vk-prod",
      "provider_configs": [
        {"provider": "openai", "allowed_models": ["*"], "key_ids": ["*"]},
        {"provider": "azure", "allowed_models": ["*"], "key_ids": ["*"]}
      ]
    }
  ]
}

Compliance & Data Residency

Restrict specific Virtual Keys to compliant providers:

{
  "provider_configs": [
    {"provider": "azure", "allowed_models": ["gpt-4o"]},
    {"provider": "bedrock", "allowed_models": ["claude-3-sonnet-20240229"]}
  ]
}

allowed_models: ["*"]: Allows all models supported by the provider, validated via the Model Catalog (populated from pricing data and the provider’s list models API). See the Model Catalog section above for how syncing works. For configuration instructions, see Governance Routing.allowed_models: [] (empty array): Denies all models - no requests will be served for this provider config. This is deny-by-default behavior introduced in v1.5.0.Empty provider_configs: When provider_configs is empty (no providers configured), all providers are blocked (deny-by-default). You must explicitly add provider configurations to allow traffic through a Virtual Key.

Adaptive Load Balancing

Enterprise Feature: Adaptive Load Balancing is available in Bifrost Enterprise. Contact us to enable it.

Adaptive Load Balancing automatically optimizes routing based on real-time performance metrics. It operates at two levels to provide both macro-level provider selection and micro-level key optimization.

Two-Level Architecture

Why Two Levels?

Separating provider selection (direction) from key selection (route) enables:

Provider-level optimization: Choose the best provider for a model based on aggregate performance
Key-level optimization: Within that provider, choose the best API key based on individual key performance
Resilience: Even when provider is specified (by governance or user), key-level load balancing still optimizes which API key to use

Level 1: Direction (Provider Selection)

When it runs: Only when the model string has no provider prefix (e.g., gpt-4o) How it works:

Model catalog lookup: Find all configured providers that support the requested model
Provider filtering: Filter based on:
- Allowed models from keys configuration
- Keys availability for the provider
Performance scoring: Calculate scores for each provider based on:
- Error rates (50% weight)
- Latency (20% weight, using MV-TACOS algorithm)
- Utilization (5% weight)
- Momentum bias (recovery acceleration)
Smart selection: Choose provider using weighted random with jitter and exploration
Fallbacks created: Remaining providers sorted by performance score (descending) are added as fallbacks

Level 2: Route (Key Selection)

When it runs: Always, even when provider is already specified (by governance, user, or Level 1) How it works:

Get available keys: Fetch all keys for the selected provider
Filter by configuration: Apply model restrictions from key configuration
Performance scoring: Calculate score for each key based on:
- Error rates (recent failures)
- Latency (response time)
- TPM hits (rate limit violations)
- Current state (Healthy, Degraded, Failed, Recovering)
Weighted random selection: Choose key with exploration (25% chance to probe recovering keys)
Circuit breaker: Skip keys with zero weight (TPM hits, repeated failures)

Scoring Algorithm

The load balancer computes a performance score for each provider-model combination:

Score = (P_{error} \times 0.5) + (P_{latency} \times 0.2) + (P_{util} \times 0.05) - M_{momentum}

Lower penalties = Higher weights = More traffic. The system self-heals by quickly penalizing failing routes but enabling fast recovery once issues are resolved.

Request Flow

Request without Provider Prefix

curl -X POST http://localhost:8080/v1/chat/completions \
  -d '{"model": "gpt-4o", "messages": [...]}'

Model Catalog Lookup

Providers supporting gpt-4o: [openai, azure, groq]

Performance Evaluation

OpenAI: Score 0.92 (low latency, 99% success rate)
Azure: Score 0.85 (medium latency, 98% success rate)
Groq: Score 0.65 (high latency recently)

Provider Selection

OpenAI selected (highest score within jitter band)

Request Transformation

{
  "model": "openai/gpt-4o",
  "messages": [...],
  "fallbacks": ["azure/gpt-4o", "groq/gpt-4o"]
}

Key Features

Feature	Description
Automatic Optimization	No manual weight tuning required
Real-time Adaptation	Weights recomputed every 5 seconds based on live metrics
Circuit Breakers	Failing routes automatically removed from rotation
Fast Recovery	90% penalty reduction in 30 seconds after issues resolve
Health States	Routes transition between Healthy, Degraded, Failed, and Recovering
Smart Exploration	25% chance to probe potentially recovered routes

Dashboard Visibility

Monitor load balancing performance in real-time:

The dashboard shows:

Weight distribution across provider-model-key routes
Performance metrics (error rates, latency, success rates)
State transitions (Healthy → Degraded → Failed → Recovering)
Actual vs expected traffic distribution

How Governance and Load Balancing Interact

When both methods are available in your Bifrost deployment, they work together in a complementary way across two levels.

Key Insight: Load balancing has two levels:

Level 1 (Direction/Provider): Skipped when provider is already specified
Level 2 (Route/Key): Always runs, even when provider is specified

This means key-level optimization works regardless of how the provider was chosen!

Execution Flow

Execution Order

All three routing layers (governance, enterprise LB Level 1, model-catalog-resolver) now run inside a single PreRequestHook phase that fires once per top-level request, before any provider call and before per-attempt hooks. Within that phase, plugins execute in placement + order:

Governance Plugin (PreRequestHook, builtin order 4)
- Evaluates routing rules (CEL expressions, scope hierarchy)
- If Virtual Key has provider_configs: performs weighted random provider selection
- Result: req.Provider/req.Model set; req.Fallbacks populated
Enterprise Load Balancer Level 1 (PreRequestHook, builtin)
- Runs after governance
- If req.Provider is already set (by governance or by an explicit provider/model prefix from the user): skips provider selection
- If not: performs performance-based provider selection across catalog providers
- Result: req.Provider/req.Model set if previously empty
model-catalog-resolver (PreRequestHook, builtin order 9 — final fallback)
- Runs last
- If req.Provider is still empty: looks up the model in the catalog and picks a provider (preferring the integration’s canonical provider when the request came in via an integration route)
- Emits a model-catalog routing-engine log entry
- Result: Always leaves req.Provider populated when the catalog knows about the model
Empty-provider validation (core, after PreRequestHook)
- If req.Provider is still empty: returns 400 to the caller with a clear error
Load Balancer Level 2 (Key Selector — core, per provider attempt)
- Always runs during request execution
- Gets all keys for the selected provider, filters by model restrictions
- Scores each key by performance metrics
- Selects best key using weighted random + exploration
- Result: Optimal key selected within the provider

Important: Even when governance specifies azure/gpt-4o in PreRequestHook, load balancing Level 2 still optimizes which Azure key to use based on performance metrics. The two-level architecture is preserved — only the layer where Level 1 runs has moved from a middleware to PreRequestHook.

Example Scenarios

Governance Only
Load Balancing Only
Both Available (Governance + Load Balancing)
Manual Provider Selection

Setup:

Virtual Key has provider_configs defined
No adaptive load balancing enabled

Request:

curl -X POST http://localhost:8080/v1/chat/completions \
  -H "x-bf-vk: vk-prod-main" \
  -d '{"model": "gpt-4o", "messages": [...]}'

Behavior:

Governance applies weighted provider routing → selects Azure (70% weight)
Model becomes azure/gpt-4o
Standard key selection (non-adaptive) chooses an Azure key based on static weights
Request forwarded to Azure with selected key

Setup:

No Virtual Key (do not send x-bf-vk) → this is the Load Balancing–only setup
Virtual Key with empty / missing provider_configs → blocks all providers (deny-by-default) and therefore is NOT an LB-only setup
Adaptive load balancing enabled

Request:

curl -X POST http://localhost:8080/v1/chat/completions \
  -d '{"model": "gpt-4o", "messages": [...]}'

Behavior:

Load Balancing Level 1 applies performance-based provider routing → selects OpenAI (best performing)
Model becomes openai/gpt-4o
Load Balancing Level 2 selects best OpenAI key based on performance metrics (error rate, latency, TPM status)
Request forwarded to OpenAI with optimal key

Setup:

Virtual Key has provider_configs defined
Adaptive load balancing enabled
Azure has 3 keys: azure-key-1, azure-key-2, azure-key-3

Request:

curl -X POST http://localhost:8080/v1/chat/completions \
  -H "x-bf-vk: vk-prod-main" \
  -d '{"model": "gpt-4o", "messages": [...]}'

Behavior:

Governance applies first (respects explicit user config) → selects Azure provider
Model becomes azure/gpt-4o
Load Balancing Level 1 sees ”/” and skips provider selection (already decided)
Load Balancing Level 2 still runs! Selects best Azure key based on performance:
- azure-key-1: 99% success rate, 150ms avg latency → score 0.95
- azure-key-2: 85% success rate, 200ms avg latency → score 0.60 (degraded)
- azure-key-3: Hit TPM limit → score 0.0 (circuit broken)
- Selects azure-key-1 (highest score)
Request forwarded to Azure with azure-key-1

Why? Governance controls provider selection (explicit user intent), but load balancing still optimizes key selection (automatic performance optimization).

Setup:

Both governance and load balancing enabled
OpenAI has 2 keys available

Request:

curl -X POST http://localhost:8080/v1/chat/completions \
  -d '{"model": "openai/gpt-4o", "messages": [...]}'

Behavior:

Governance sees ”/” and skips
Load Balancing Level 1 sees ”/” and skips provider selection
Load Balancing Level 2 still runs! Selects best OpenAI key based on current metrics
Request forwarded to OpenAI with optimal key

Why? User explicitly specified the provider, but key-level optimization still provides value by selecting the best-performing OpenAI key.

Provider vs Key Selection Rules

Scenario	Provider Selection	Key Selection
VK with provider_configs	Governance (weighted random)	Standard or Adaptive (if enabled)
VK without provider_configs + LB	Blocked (empty = no providers allowed)	N/A
No VK + LB	Load Balancing Level 1 (performance)	Load Balancing Level 2 (performance)
Model with provider prefix + LB	Skip (already specified)	Load Balancing Level 2 (performance) ✅
No Load Balancing enabled	Governance or User or Model Catalog	Standard (static weights)

Critical Insight:

Provider selection respects the hierarchy: Governance → Load Balancing Level 1 → User specification
Key selection runs independently and benefits from load balancing even when provider is predetermined

This separation is what makes the two-level architecture so powerful!

Routing Rules (Dynamic Expression-Based Routing)

Position in routing pipeline: Routing Rules execute before governance provider selection and can override it. They are evaluated before adaptive load balancing, enabling dynamic provider/model overrides based on runtime conditions like headers, parameters, capacity metrics, and organizational hierarchy.

Overview

Routing Rules provide sophisticated, expression-based control over request routing using CEL expressions. Unlike governance routing (static weights), routing rules evaluate conditions dynamically at request time.

When Routing Rules Execute

How It Works

All routing layers below execute inside the PreRequestHook phase in registration order; routing rules run first within the governance plugin’s hook body, before VK load balancing:

Routing rules evaluate first in scope precedence order (VirtualKey → Team → Customer → Global)
If a routing rule matches: provider/model/fallbacks are overridden, the VK provider_configs weighted selection is skipped
If no routing rule matches: VK provider selection runs (weighted random)
Enterprise LB Level 1: skipped if req.Provider is already set; otherwise performs performance-based selection
model-catalog-resolver: last fallback — fills req.Provider from the catalog if no earlier plugin set it
Empty-provider validation (core): returns 400 if req.Provider is still empty after the phase
Load balancing Level 2 (key selection, core, per attempt): always runs to select the best key within the determined provider

Available CEL Variables

Routing rules access request context through CEL variables:

// Request context
model                      // Requested model
provider                   // Current provider

// Headers and parameters (case-insensitive)
headers["x-tier"]          // Request header
params["region"]           // Query parameter

// Organization context
virtual_key_id             // VirtualKey ID
team_name                  // Team name
customer_id                // Customer ID

// Capacity metrics (0-100 percentage)
budget_used                // Budget usage %
tokens_used                // Token rate limit usage %
request                    // Request rate limit usage %

Examples

Route based on user tier

headers["x-tier"] == "premium"   // → openai/gpt-4o

Route to fallback when budget high

budget_used > 85                 // → groq/llama-2 (cheaper)

Route by team

team_name == "ml-research"       // → anthropic/claude-3-opus

Complex multi-condition routing

headers["x-environment"] == "production" &&
tokens_used < 75 &&
team_name == "ai-platform"       // → openai/gpt-4o

Scope Hierarchy

Rules are evaluated in organizational precedence order (first-match-wins):

VirtualKey scope (highest priority)
Team scope
Customer scope
Global scope (lowest priority)

Within each scope, rules are sorted by priority (ascending: 0 before 10).

Key Features

Feature	Description
CEL Expressions	Powerful, composable condition language with multiple operators
Scope Hierarchy	Rules at VirtualKey/Team/Customer/Global levels with proper precedence
Dynamic Override	Override provider and/or model based on runtime conditions
Fallback Chains	Define multiple fallback providers for automatic failover
Priority Ordering	Lower priority evaluated first within same scope
Capacity Awareness	Access real-time budget and rate limit usage percentages

For complexity-based routing driven by request content, see Complexity Router. It adds a complexity_tier CEL variable that lets routing rules steer SIMPLE, MEDIUM, COMPLEX, and REASONING requests to different models.

Integration with Governance

Routing Rules execute before governance provider selection and can override it: If a routing rule matches:

Routing Rules evaluate
                    ↓
Rule matches: budget_used > 85
                    ↓
Override: groq/llama-2 (cheaper provider)
                    ↓
Governance provider_configs SKIPPED
                    ↓
Load Balancing selects best key

If no routing rule matches:

Routing Rules evaluate
                    ↓
No matching rule
                    ↓
Governance decides: azure/gpt-4o (70% weight)
                    ↓
Load Balancing selects best key

Key Insight: Routing rules have higher precedence than governance provider_configs. If a routing rule matches, governance provider_configs are bypassed entirely.

Integration with Load Balancing

Routing Rules work before load balancing:

Routing Rules decide: openai/gpt-4o
                    ↓
Load Balancing Level 1: Skipped (provider already determined)
                    ↓
Load Balancing Level 2: Selects best OpenAI key based on performance

Even when routing rules determine the provider, load balancing Level 2 still optimizes which API key to use within that provider.

Use Cases

Tier-based routing: Premium users → fast providers
Capacity failover: High budget usage → cheaper providers
Team preferences: Different teams → different providers
A/B testing: Route subset of traffic to test models
Regional routing: EU users → EU providers (data residency)
Complex logic: Combine multiple conditions for sophisticated routing

Dashboard & API

Routing rules can be configured through:

Dashboard: Visual rule builder with CEL expression editor
API: POST /api/governance/routing-rules and related endpoints
Scope: Create rules at global, customer, team, or virtual key levels
Priority: Order rules within scope with numeric priority

For complete documentation, see Routing Rules Documentation.

Choosing the Right Approach

Use Governance When: ✅ Compliance requirements: Need to ensure data stays in specific regions or providers ✅ Cost optimization: Want explicit control over traffic distribution to cheaper providers ✅ Budget enforcement: Need hard limits on spending per provider ✅ Environment separation: Different teams/apps need different provider access ✅ Rate limit management: Need to respect provider-specific rate limits
Use Routing Rules When: ✅ Dynamic routing: Route based on runtime request context (headers, parameters) ✅ Capacity-aware routing: Switch to fallback when budget/rate limits high ✅ Organization-based routing: Different rules for teams/customers ✅ A/B testing: Route subset of traffic to test new models ✅ Complex conditions: Multiple criteria (e.g., tier + capacity + team)
Use Load Balancing When: ✅ Performance optimization: Want automatic routing to best-performing providers ✅ Minimal configuration: Prefer hands-off operation with intelligent defaults ✅ Dynamic workloads: Traffic patterns change frequently ✅ Automatic failover: Need instant adaptation to provider issues ✅ Multi-provider redundancy: Want seamless provider switching based on availability
Use All Three Together: ✅ Complete solution: Governance provides base routing, routing rules add dynamic override, load balancing optimizes keys ✅ Maximum flexibility: Different Virtual Keys use different strategies (governance vs routing rules vs load balancing) ✅ Enterprise deployments: Complex organizations with multiple requirements per layer

Additional Resources

Governance Routing

Configuration instructions for setting up governance routing via Virtual Keys (Web UI, API, config.json)

Routing Rules

Dynamic, expression-based routing using CEL expressions for runtime conditions

Adaptive Load Balancing

Technical implementation details: scoring algorithms, weight calculations, and performance characteristics

Virtual Keys

Learn how to create and configure Virtual Keys

Fallbacks

Understand how automatic fallbacks work across providers

​Overview

​The Model Catalog

​Data Sources

​How Model Availability is Determined

​Syncing Behavior

​Allowed Models Behavior with Examples

​How It’s Used in Routing

​Default Provider Resolution

​How It Works

​Example

​Routing allowlist enforcement

​Governance-based Routing

​How It Works

​Configuration Example

​Request Flow

​Key Features

​Best Practices

​Adaptive Load Balancing

​Two-Level Architecture

Why Two Levels?

​Level 1: Direction (Provider Selection)

​Level 2: Route (Key Selection)

​Scoring Algorithm

​Request Flow

​Key Features

​Dashboard Visibility

​How Governance and Load Balancing Interact

​Execution Flow

​Execution Order

​Example Scenarios

​Provider vs Key Selection Rules

​Routing Rules (Dynamic Expression-Based Routing)

​Overview

​When Routing Rules Execute

​How It Works

​Available CEL Variables

​Examples

​Route based on user tier

​Route to fallback when budget high

​Route by team

​Complex multi-condition routing

​Scope Hierarchy

​Key Features

​Integration with Governance

​Integration with Load Balancing

​Use Cases

​Dashboard & API

​Choosing the Right Approach

​Additional Resources

Governance Routing

Routing Rules

Adaptive Load Balancing

Virtual Keys

Fallbacks

Overview

The Model Catalog

Data Sources

How Model Availability is Determined

Syncing Behavior

Allowed Models Behavior with Examples

How It’s Used in Routing

Default Provider Resolution

How It Works

Example

Routing allowlist enforcement

Governance-based Routing

How It Works

Configuration Example

Request Flow

Key Features

Best Practices

Adaptive Load Balancing

Two-Level Architecture

Level 1: Direction (Provider Selection)

Level 2: Route (Key Selection)

Scoring Algorithm

Request Flow

Key Features

Dashboard Visibility

How Governance and Load Balancing Interact

Execution Flow

Execution Order

Example Scenarios

Provider vs Key Selection Rules

Routing Rules (Dynamic Expression-Based Routing)

Overview

When Routing Rules Execute

How It Works

Available CEL Variables

Examples

Route based on user tier

Route to fallback when budget high

Route by team

Complex multi-condition routing

Scope Hierarchy

Key Features

Integration with Governance

Integration with Load Balancing

Use Cases

Dashboard & API

Choosing the Right Approach

Additional Resources
